Product Description

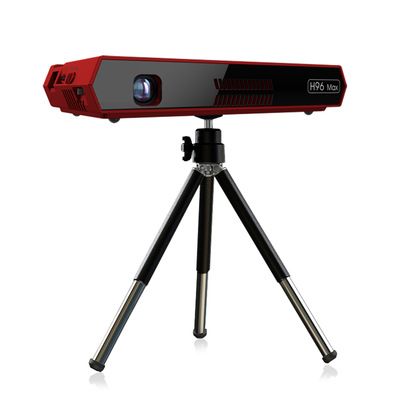

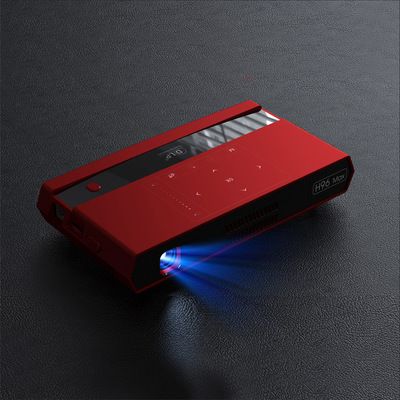

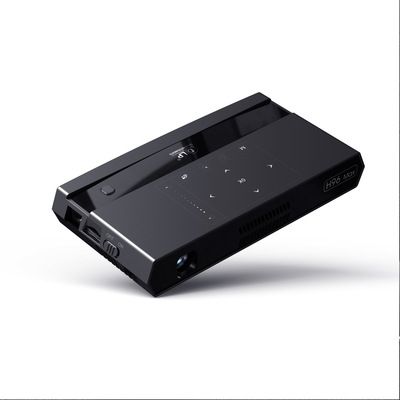

H96 Max Product description Projection Specification Display Technology DLP 0.2 inch DMD Technology Light Engine RGB LED Resolution 854x480 Brightness 150LM Aspect Ratio 16:9 Effective Focal Length 6.5 mm Focusing Manual focus in sliding adjustment Keystone Correction Vertical: ±45 degree Projection Distance 0.5m to 8m Image Size (normal operation) 31"@ 1m Offset 100% Throw Ratio 1.4 Contrast Ratio 400:1 Distortion ≤2% Uniformity (JBMA.) 80% Color Saturation 100% NTSC LED Life 20,000 hours Operating Temperature 0 ~ 50℃ System Parameters OS Android 6.0 CPU Amlogic S912 Octa core ARM Cortex-A53 CPU up to 1.5GHz (DVFS) GPU ARM Mali-T820MP3 GPU up to 750MHz (DVFS) RAM 2G ROM 16G WIFI 2.4G/5G Wifi Bluetooth BT 4.1 Ethernet Ethernet 10/100M Basic parameters Built-in Battery 7.4V 4100mA/h Remote Control Support（IR) Infrared Screen Mirror Eshare/iMirror/Miracast Offic Software WORD/EXCEL/PDF(Depends on APK install) Video/Picture Codecs o VP9-10 Profile-2 up to 4Kx2K@60fps o H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
