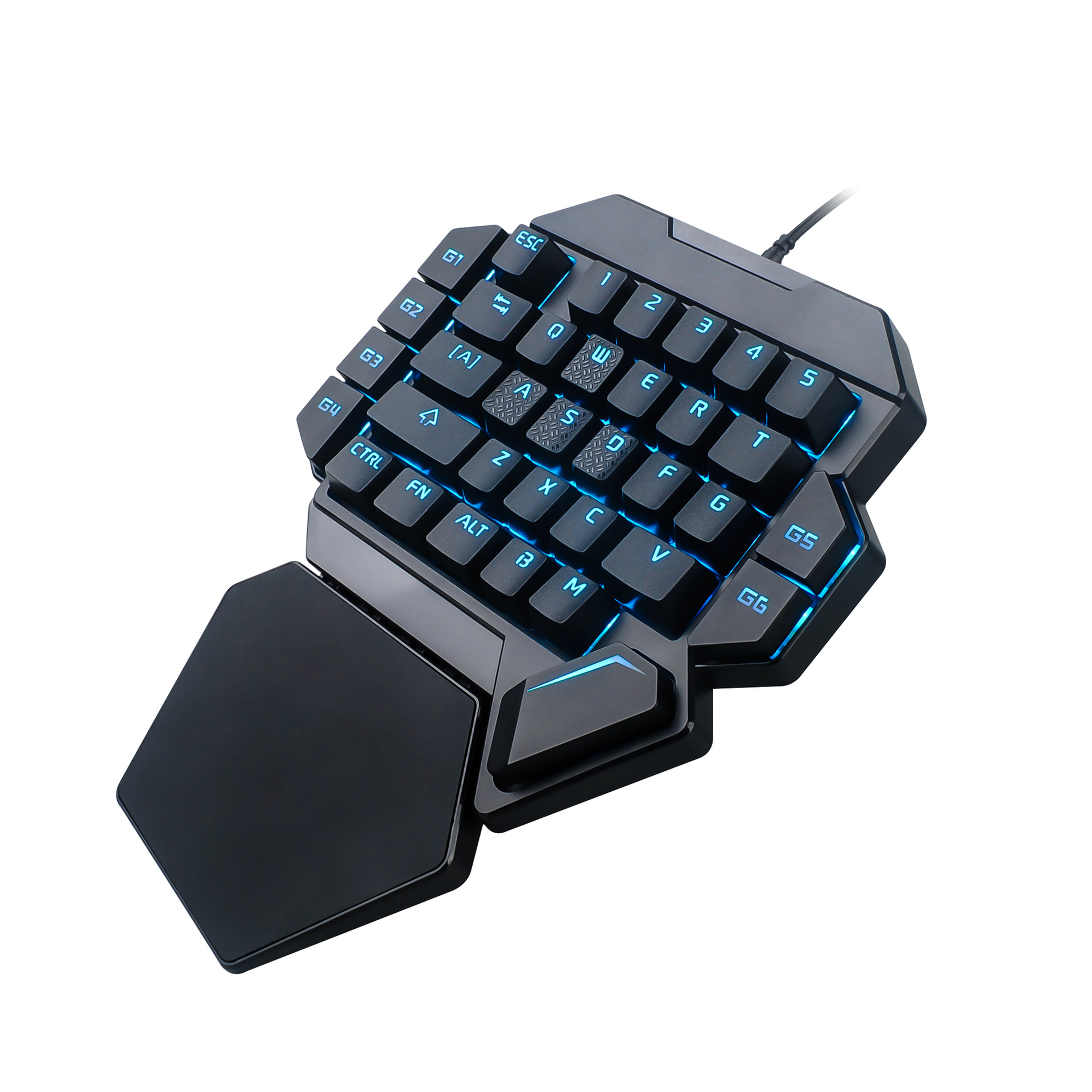

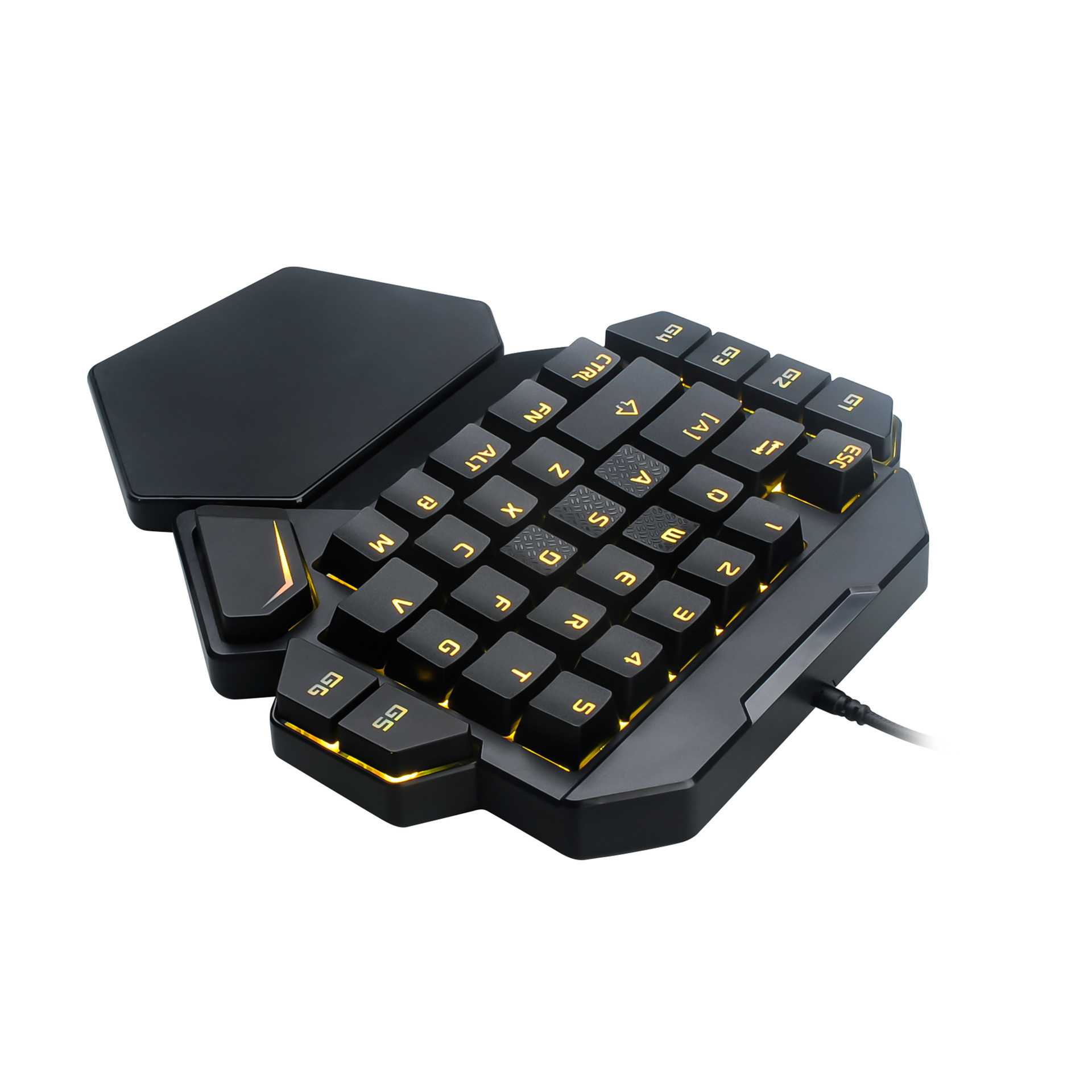

K50 one-handed game mechanical keyboard manual
Try to connect the K50 one-handed mechanical keyboard to the USB interface of the computer itself, and avoid external devices such as conversion cables.
When the product is not in use, do not store the product for a long time in the sun exposure or damp and dark environment to avoid damage to the internal components of the keyboard and affect the normal use.

Product Specifications:

Product name: Mechanical one-handed keyboard

Product model: K50

Product size: 233*182*38mm

Product weight: 382g

Number of keys: 35keys

Transmission mode: wired USB

Key life: 5000W

Operating temperature: 0oC to 40oC

Operating humidity: ≤85%

Operating voltage: 5V±0.5
Working current: ≤170mA (MAX)
Applicable system: Win2000, Win XP, Win ME, Vista, Win7, Win8, WIN10,

Product features:
The mechanical switch used in the field of professional games is adopted, and the button layout is curved, which is ergonomic.
Concave key cap design, when tapping the keyboard fingertips comfortable, sensitive input, reduce errors.

FN combination features:

Macro recording function

1) G1-G6 If there is no recorded content, the default corresponds to F1,F2,F3,F4,F5,F6.

2) If there is no recording content in G1: press FN+G1 to enter the recording state, you can input the recording content when G1 light blinks, and then press FN+G1 to complete the recording after G1 light returns to normal mode. Press FN+G1 to clear the recorded content and turn it into F1 function.

G2-G6 The method of recording and clearing recorded content is the same as the above.
