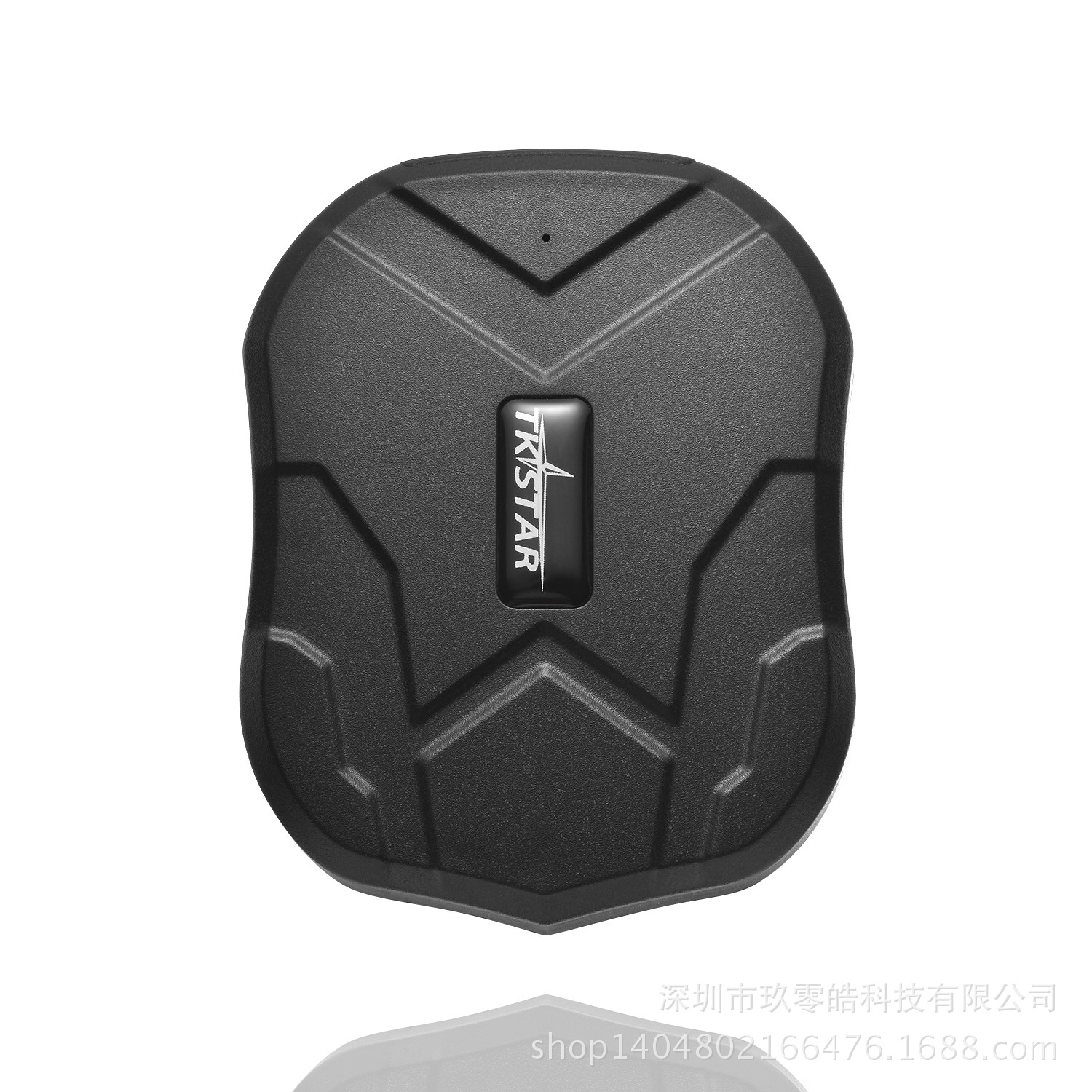

TK-905 Waterproof battery with strong magnetic adsorption function 5000 mah long standby time Support mobile APP computer SMS wechat public account view location Support electronic fence overspeed alarm peripheral navigation track playback peripheral pickup and other multiple functions easy to use and easy to understand.

 Contact: Tel: 13549202998 Lei Sheng

QQ:275871959

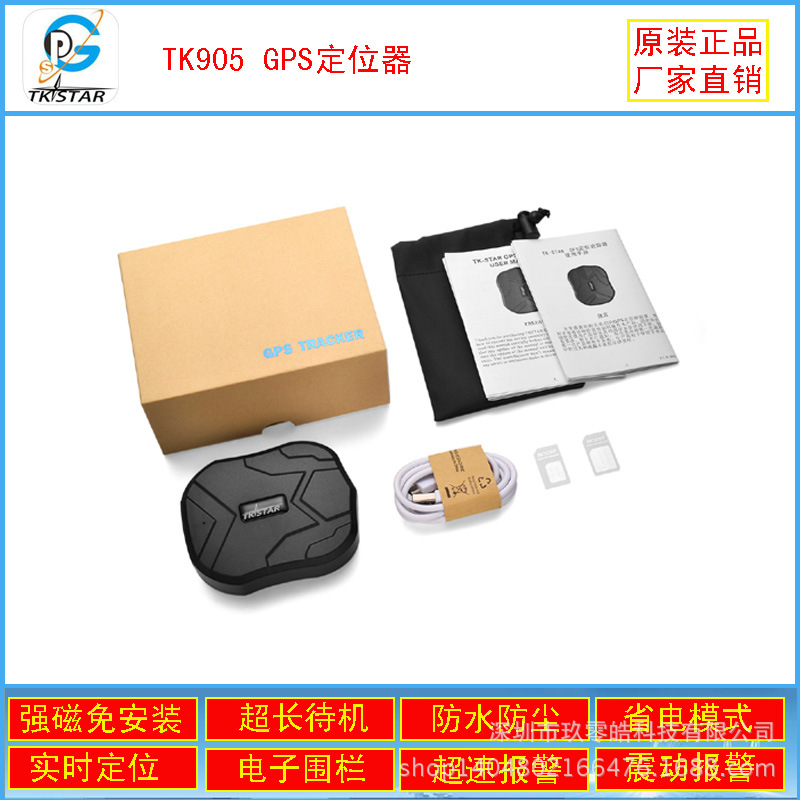

Packing scene picture:







Cattle and horse collar bag need to be matched can contact customer service:





Need to match sheep with the collar can contact customer service price separately.

Main functions:

• Real-time free tracking, GSM/GPS dual-mode positioning, positioning accuracy can reach 5 meters;
• 5000mah large capacity battery, a charge can be ultra-long standby 7200 hours;
• Small size, equipped with super strong magnetic can be attached to the car low tracking positioning with waterproof bag;
• Electronic fence, speeding, low power alarm, voice monitoring.
• Free tracking platform, PC, mobile client, IOS/ Android APP, wechat.
• Users can directly download the mobile client or log in to the platform and enter the ID number on the back of the device as the user name. The initial password is 123456.

Installation position;

Hardware description:



1.USB charging port 2. Signal indicator 4.SIM card slot 4. Lanyard port 5. Strong magnetic



2. Place the SIM card

As shown in the figure, open the glue plug, push the SIM chip upward into the SIM card slot, and the device will start automatically.

Attention:

1. Please use the GSM card of China Mobile or Unicom.

2. Insert the ordinary SIM phone card, pay attention to the direction of the card, and follow the illustration on the shell.







3. The device starts

l The automatic power indicator of the card device lights up and the device starts to work.

l Activate GPRS according to 4.0 Settings after 30 seconds of startup.

l Automatic GPS positioning when there is GPS signal, automatic LBS positioning when there is no GPS signal.

l The device senses the vibration and automatically starts to work. If there is no vibration for 5 minutes, the device will enter the power-saving hibernation mode.

l Remove the SIM card and the device automatically shuts down.

4.0 Activating the device Starts locating the device

Activate the device, send SMS to open GPRS to activate the device.

Send "gprs123456" to the card number inside the device.







After the locator blinks blue and green alternately, you can query the location of the locator. There are four query methods: mobile APP, website platform, wechat and SMS

4.1 Using mobile APP location





1. android phone: Scan the QR code to select Android to download and install the software to the phone, or search "TKSTAR GPS" in the app store to download and install the software to the phone.

2. Apple phone: Scan the QR code to select iPhone to download and install the software to the phone, or search "TKSTAR GPS" in the store to download and install the software to the phone.

3. Select IMEI Login in the lower right corner.

Platform address: www.mytkstar.net

IMEI: indicates the IMEI affixed to the rear cover of the device

Password: Factory default 123456 (can log in to the platform to change the password)







Real-time tracking: Display the last positioning position of the device, dial the phone inside the device to wake up the device, and the device automatically locates and updates to the latest position.

Historical track: Queries the historical track of the device in time segments. (LBS base station data error is relatively large, you can choose whether to filter out)

Electronic fence: Set the fence and send an alarm to the APP and platform when the device enters or goes out of the fence.

Command delivery: Set the product parameter function of the device.

Device information: Edit device information.

Device message: Displays alarm information generated by the device.

Perimeter navigation: Navigate to surrounding public places.

Alarm reminder: Set the APP push of alarm information.

Offline maps: APP buffering is faster after downloading offline maps.





4.2 Positioning Using the Platform





1. Go to www.mytkstar.net and select the Chinese language.

2. Select: IMEI/ID Number

IMEI/ID: indicates the IMEI affixed to the rear cover of the device

Password: Factory default 123456 (can log in to the platform to change the password)



4.3 Using wechat to Locate

1. Add public account "MYTKSTAR" or scan QR code to add.

2. After the device is added, bind the device according to wechat prompt instructions, and send 123 to query and locate the device.

For example, run @4109000001#123456







4.4 Using SMS to Locate Users

Text "G123456#" to the phone number inside the device and you will receive a google link with latitude and longitude information

For example:



Product certification (Absolutely valid)



First, freight and express delivery

In addition to the specially stated products, the price of the products does not include freight by default, and the freight rate and calculation method will be slightly different according to different places and different logistics companies.

Large quantities of goods need to negotiate the mode of transport separately.
2, when you are sure to take the item, please consult our customer service online and determine the freight situation, if the order does not include the freight, we will inform you afterwards to pay the freight;
3, if you have questions about the freight, please consult our customer service online or QQ consultation :275871959.



2. Delivery time



1 [Monday to Sunday] daily delivery from 10am to 6pm, orders after 6pm are shipped on the second day
2 [arrival time] At present, the domestic express theoretically is 3 to 4 days to arrive (except for remote). There may be a delay of 1 day on the weekend!
3 [Friendly tips] Sellers can not control the speed of the express company, encountered logistics problems sellers will try to help solve, due to the express caused by the poor comments, the store will not accept!
4 [Before signing] Please check the package, especially if the outer package is damaged, please reject the visa directly if there is any problem! The seller will not accept the complaints of damaged items and unequal quantities after signing!



Third, pre-sale, after-sales, return and exchange principle

1. Before the buyer takes the auction, please determine the function and application scope of the product with the sales, due to their subjective dissatisfaction, or because they can not operate the equipment correctly, they will not accept the return.

2. If it is due to quality problems (except for damage caused by customers who do not understand the operation), we will be responsible for replacing the goods for free. One year warranty!

3. For customized products, please negotiate the order details directly with sales.
